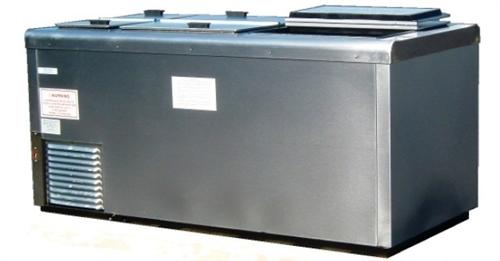

Nelson VBD10 Coldplate Ice Cream Truck Freezer


Nelson VBD10 Coldplate Cabinet

NEW! All Nelson self-contained VBD freezers are NSF listed!

If you’re using dry ice, you may be melting down your profits. Nelson vending cabinets with cold plates are a chip above the rest. Guaranteed to give you a minimum of a 12 hour day in 90 degree temperatures, Nelson cabinets are convenient, economical, dependable and can be built for ice cream, soda, Italian ices, ice slush, or combinations such as ice cream and soda. Let your sales rise with the heat, because nothing should be melting-especially your product.

The operation of the cold plate vending freezer is quite simple. Plug the unit in at night (generally a standard 115 volt outlet, maximum 11 amps) and freeze the cold plates overnight. In the morning (or 10-12 hours later) the freezer is ready to operate and hold tempera-tures of zero degrees for up to 12 hours without an electric source or dry ice.

Other temperatures may be used for specific applications, such as +6 degrees F. for dipping ice cream, +12 degrees F. for scooping Italian ices,+25 degrees F. for soft frozen slush and +40 degrees F. for refrigerated items.









  • Capacity: 23 cu ft
  • Length: 69
  • Width: 30
  • Height: 34
  • HP: 1/2
  • Volts: 115
  • Amps: 10
  • Wt. lbs: 780

Advantages over dry ice:

  1. Lower operating costs
  2. Less product loss
  3. Convenient

Advantages over Generators:

  1. Reliability—5 year limited warranty on cold plates, insulation and rust-throug
  2. Fewer repairs
  3. Less downtime—generally run at night when outdoor temperatures are coole
  4. Less Heat—eliminates exhaust heat of an operating freezer or waste heat from a generato

Additional Features:

  • Poured Urethane Walls—minimum 3” on sides, 3.5” on bottom, 40% more than conventional equipment.
  • Oversized Compressors for fast pull down.
  • Built-in Dole Coldplates
  • Safe-edged Stainless Steel Tops– All corners welded and polished. No raw edges, ever!
  • Stainless Front & End Construction
  • Safety Kit for securing freezer to floor
  • Heavy Duty Outdoor Power Cord
  • 5-Year Limited Warranty on cabinet construction.
  • 1-Year Limited Warranty on compressor


When your order arrives, please make sure that you inspect the equipment carefully when you receive it from the carrier. If there is any visible damage, please mark "damaged" on the carrier paperwork.

You need to make sure you unwrap the equipment - all boxes/pieces to make sure that everything ordered is there, and that it isn't damaged. WE CANNOT PUT IN A CLAIM IF YOU DO NOT MAKE A NOTATION OF SOME SORT ON THE SHIPPING PAPERWORK. The delivery person can't leave until you sign the paper work. If there is a chance that the person who placed the order and is reading this policy will not be there during delivery of the shipment, make sure the store personnel is aware of the policy. Damages not noted because you were not there at the time of the delivery, and someone else received it who did not note them on the paperwork, will not be eligible for the claims process. PLEASE make sure everyone who might be there to receive the shipment understands this.

Again, a notation of damage on the paperwork will make it easier for us to put in a claim. If the damage is excessive, refuse the shipment (new equipment only, used or customer equipment cannot be refused)and have them send it back to us. We will ship a replacement unit out immediately. If the damage is minor or obviously cosmetic, please note this on the paper work and go ahead and accept the equipment. You can call and e-mails us a few pictures of the cosmetic damage, and we will work out a partial refund that is relative to the damage and acceptable to you.

If the equipment does not work when you plug it in, give us a call right away. Our goal is to make sure you are happy with what you get and that it works right from day one.


The return/refund policy on NEW Equipment and USED or CUSTOM equipment are different. You have 3 days to return brand new equipment for a full refund less shipping and a 20% restocking fee. Custom equipment like dipping carts or used equipment cannot be returned and must be accepted when delivered. We guarantee custom equipment and used equipment will be in good working condition when you receive it, and if not, as long as you report the mechanical problem within the first 14 days you have the equipment, we will get it fixed and cover the cost of doing so unless we have a separate stated warranty on a specific deal. Custom or used equipment cannot be returned under any circumstances. Should it not be in working order when you get it, we will get it fixed. If we can’t get it fixed, we will refund your money. On standard new equipment, you must notify us within 3 days by sending an email to stating that you want to return the equipment. We will refund your payment less appropriate shipping and restock fees and coordinate for the equipment to be picked back up. See "shipping" policy link for instructions on how to properly receive equipment.
