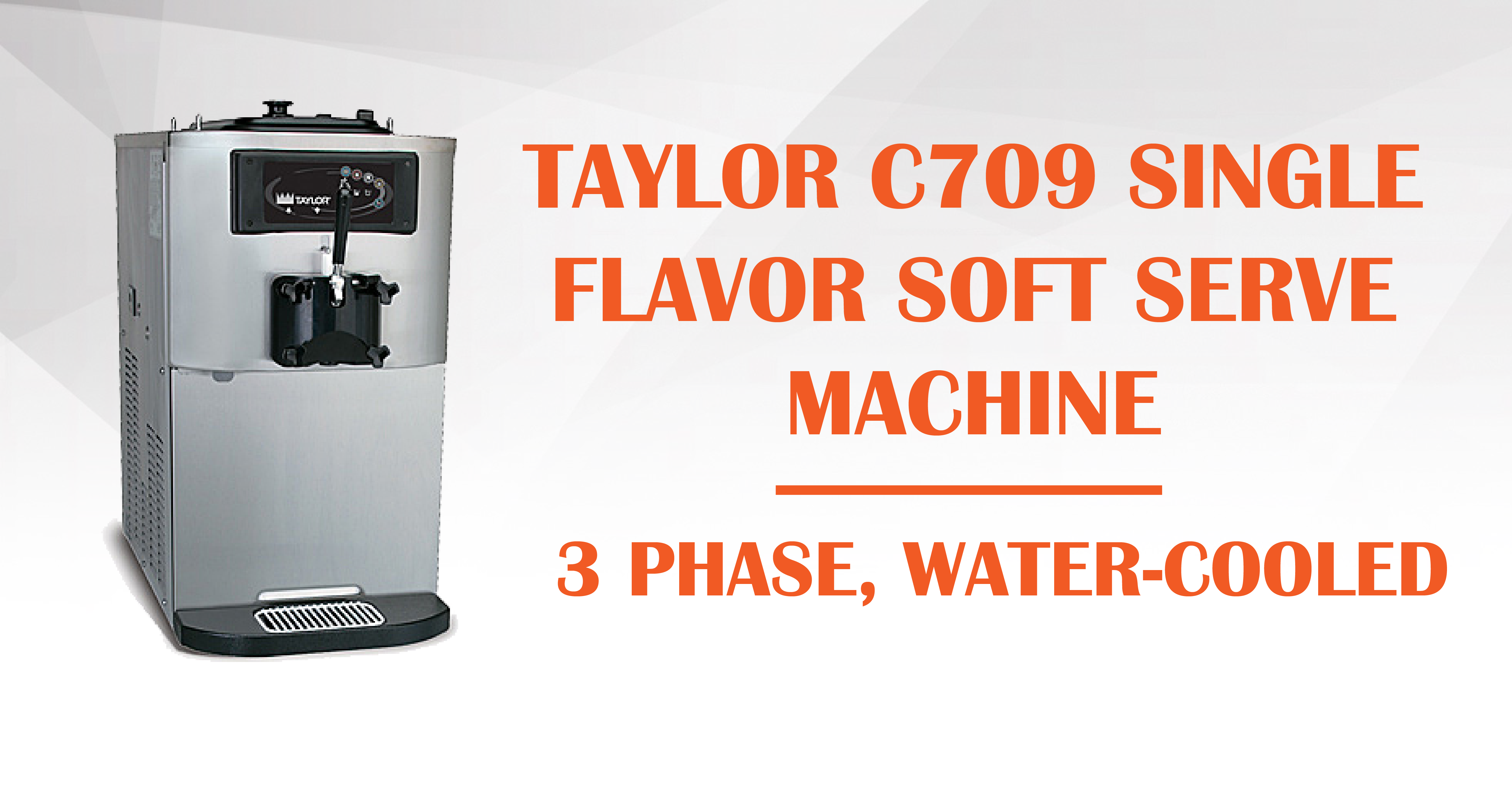

Single Flavor Soft Serve Machine: Taylor Model C709

Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet with soft serve ice cream machine model C709.

Index:

1. Spec Sheet & Manual
2. USED Taylor C709
3. Operation Training
4. Assembly
5. Sanitizing
6. Priming
7. Preparation for Heat Treatment Cycle
8. Daily Closeing Procedures
9. Daily Opening Procedures
10. Manual Brush Cleaning
11. Draining Product from the Freezing Cylinder
12. Rinising
13. Hopper Cleaning
14. Disassembly

The Taylor C 709 freezer machine has a 3.4 quart capacity freezing cylinder with a single spout door for dispensing soft serve ice cream. When properly maintained and operated, it will produce a consistent quality product and many years of optimal service.

Below are specifications for the Taylor C709 single flavor machine:

The Taylor C709 is a powerful single flavor machine, with the ability to produce high quantity and quality soft serve and frozen yogurt withe ease. Interested in buying a used Taylor C709? If so, below is a great limited time offer on this Taylor C709:

CLICK HERE to view this USED Taylor C709 on our store! Otherwise, keep reading to learn how you disassemble, clean, sanitize, and reassembly your Taylor C709 machine!

Refer to the C 709 Operators manual before operating and performing any of the following maintenance procedures. In this article, we'll show you how to assemble the component parts into the freezer, sanitize the parts, and prime the freezer with fresh mix in preparation to serve your first portion. We'll begin our instructions at the point where you enter the store in the morning, finding the parts disassembled and laid out to air dry from the previous night's cleaning.

Before performing any assembly procedures, make sure the power switch is in the off position.

Lubricate the groove on the beater drive shaft. To make sure the mix does not leak out of the back of the freezing cylinder, the middle section of the boot seal must be convex. If the middle section of the boot seal is concave, turn the seal inside out so it is correctly configured. Slide the seal over the small end of the shaft and then engage the seal into the groove on the shaft. Heavily lubricate the inside portion of the boot seal and the flat end of the boot seal that comes in contact with the rear shell bearing. Apply an even coat of lubricant to the shaft.

Do not lubricate the Hex end. Insert the beater drive shaft through the rear shell bearing in the freezing cylinder and engage the Hex end firmly into the drive coupling. Take one of the scraper blades and slip it under the hook on the front of the beater. Wrap the blade around the beater, following the Helix, pushing the blade down onto the Helix as you wrap. At the back end of the beater, slip the blade under the hook. Repeat this step for the second scraper blade.

Use extreme caution when handling the beater assembly, as the scraper blades are very sharp and may cause injury. Hold the beater securely and slide it into the freezing cylinder and over the end of the dry shaft. The beaters should fit snugly but not so tightly that the beater cannot be turned slightly. To engage the dry shaft. Place the door gasket into the groove on the back of the freezer door. Do not lubricate the gasket or bearing.

Slde the front bearing over the baffle Rod so the flanged edge is against the door. Slide the three o rings into the grooves on the draw valve and lubricate them. Likely lubricate the inside of the top of the freezer door valve cavity. Insert the draw valve from the top with the draw handle slot facing forward with the door seated on the freezer studs. Install the hand screws with the longer ones on top.

Tighten the screws equally in a criss cross pattern to ensure the door is snuck.

The C 709 features an adjustable draw handle to provide portion control. The draw handle should be adjusted to provide a flow rate of five to seven and one half oz of product by weight per 10 seconds. To increase the flow rate, turn the adjustment screw clockwise. To decrease the flow rate, turn the adjustment screw counterclockwise. Position the draw handle with the adjustment screw facing down.

Slide the fork of the draw handle into the slot of the draw valve and secure it with the pivot pin.

Snap the design cap over the end of the door spout.

Your machine may come with a shallow or deep design cap. Slide the drip pan into the hole on the side panel. Install the front drip tray and splash shield under the door spot.

Slide the three o rings into the grooves of the inner feed tube. Slide the two o rings into the grooves of the outer feed tube.

Make sure the hole in the air orfice is clean and not blocked. If the hole is blocked, use sanitizing solution to clear the hole.

Slide the small o-ring into the groove of the air orface. Laying the inner feed tube, the outer feed tube air orfice and the agitator in the bottom of the mix Hopper for sanitizing.

mix two gallons of approved sanitizing solution with warm water, following the manufacturer's instructions. Pour the two gallons of sanitizing solution over all of the parts in the bottom of the mix Hopper and allow it to flow into the freezing cylinder. Be sure your hands are clean and sanitized. While the solution is flowing into the freezing cylinder, brush clean the mix level sensing probe on the bottom of the Hopper, the mix Hopper, the mix Inlet hole and the feed tubes.

Place the power switch in the on position. Touch the wash symbol and allow the sanitizing solution in the freezing cylinder to agitate for five minutes. Place a pale beneath the door spout and then open and close the draw valve six times. Next, open the draw valve to draw off all of the sanitizing solution and then touch the wash symbol and close the draw valve. Lubricate the o rings on the inner and outer feed tubes.

Do not lubricate the o ring in the air Orfice. Place the inner feed tube inside the outer feed tube.

Install the air Orfice into the hole in the top of the inner feed tube. Make sure the hole in the air Orfice is clean and not blocked. Stand the assembled feed tube in the corner of the mix Hopper and place the agitator on the agitator housing

with a pale beneath the door spout, open the draw valve. Pour two and one half gallons of fresh mix into the mix Hopper and allow it to flow into the freezing cylinder. This will force out any remaining sanitizing solution. When full strength mix is flowing from the door spout, close the draw valve.

When the mix stops bubbling down into the freezer cylinder, install the assembled feed tubes into the mix Inlet hole. The pin on the inner feed tube should be turned and positioned at the bottom of the notch in the outer feed tube. This will align the holes in the feed tubes and allow mix and air to enter the freezing cylinder. Select the auto symbol.

Fill the Hopper with fresh mix and replace the Hopper cover. We are now ready to dispense and serve products.

this procedure must be performed once daily. The function of the heat treatment cycle is to destroy bacteria by raising the temperature of the mix in the freezing cylinder and the Hopper to a specified temperature for a specified period of time and then bringing the temperature back down low enough to retard spoilage. The heat treatment cycle will start at the time designated in the auto heat time. The level of mix and the mix Hopper must be up to the fill line on the agitator paddle and the mixed low light must not be on.

If the brush clean counter display has counted down to one day.

Do not add mix. The machine must be disassembled and brush clean within 24 hours. The freezer must be in the auto mode. Auto symbol illuminated or in the standby mode standby symbol illuminated before the heat cycle may be started. Make sure your hands are clean and sanitized before performing the following procedures.

Remove the drip pan and Hopper cover, then remove the air orfice the feed tube assembly and the agitator from the mix Hopper. Take them to the sink for cleaning and sanitizing. Rinse these parts in cool, clean water. Prepare a small amount of cleaning solution using warm water and then brush clean and sanitize the parts using clean sanitized hands. Install the agitator back onto the agitator post.

If you do not install the agitator correctly, the machine will fail the heat cycle and lock out in the morning. Lift and turn the inner feed tube of each assembled feed tube so the pin rests on top of the outer feed tube. This will close the hole in the assembled feed tubes, preventing mix in the Hopper from entering the freezing cylinder during the heating and standby process. Install the feed tube assembly and air orfice replace the Hopper cover and install the drip pan.

The heat cycle will start when the clock on the machine reaches the auto heat time set in the manager's menu. Once the heating cycle is started, it cannot be interrupted. The heating cycle will take a maximum of 4 hours to complete with full Hoppers. Do not attempt to draw a product or disassemble the machine during the heat cycle. The product is hot and under extreme pressure.

When the cycle is complete, the control will return to the standby mode. The standby symbol will be illuminated.

Remove the design cap, front drip tray, and splash shield. Take them to the sink for cleaning and sanitizing. Make sure your hands are clean and sanitized before performing the following procedures: prepare a small amount of cleaning solution using warm water and brush clean and sanitize the parts. Place the front drip tray, splash shield, and design cap on a clean dry surface to air dry overnight or until the heating cycle is complete.

Return to the freezer with a small amount of cleaning solution. Dip the door spout brush into the cleaning solution and brush clean the door spout and bottom of the draw valve. To ensure sanitary conditions are maintained, brush each item for a total of 60 seconds, repeatedly dipping the brush and cleaning solution. Using a clean sanitized towel, wipe down the freezer door, front panel, the area around the bottom of the freezer door and any other areas that demonstrate a build up of either moisture or food substance.

Before performing the opening Procedures Check the display panel for any error messages.

Normally, the display is blank unless an operational fault has occurred. If a fault has been detected, investigate the cause and follow the instructions on the display before proceeding.

Make sure your hands are clean and sanitized before performing the following procedures: prepare a small amount of sanitizing solution using warm water. Sanitize the air orfice, design cap, front drip tray and splash shield in this solution. Make sure the hole in the air orfice is clean and not blocked. If the hole is blocked, use sanitizing solution to clear the hole. Do not enlarge the hole in the air orfice. Return to the freezer with a small amount of sanitizing solution. Dip the door spout brush into the sanitizing solution and brush clean the door spout and bottom of the draw valve to ensure sanitary conditions are maintained. Brush clean each item for a total of 60 seconds, repeatedly dipping the brush in sanitizing solution.

Using a clean sanitized towel, wipe down the freezer door, front panel, the area around the bottom of the freezer door and any other areas that demonstrate a buildup of either moisture or food substance. Install the front drip tray and splash shield. Snap the design cap over the end of the door spout. When ready to resume normal operation, touch the auto symbol. When the unit cycles off, the product in the freezing cylinder will be at serving viscosity.

Lift the Hopper cover. Turn the inner feed tube of each assembled feed tube so the pin rests at the bottom of the notch of the outer feed tube. Install the air orfice.
