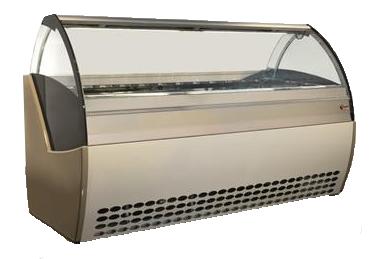

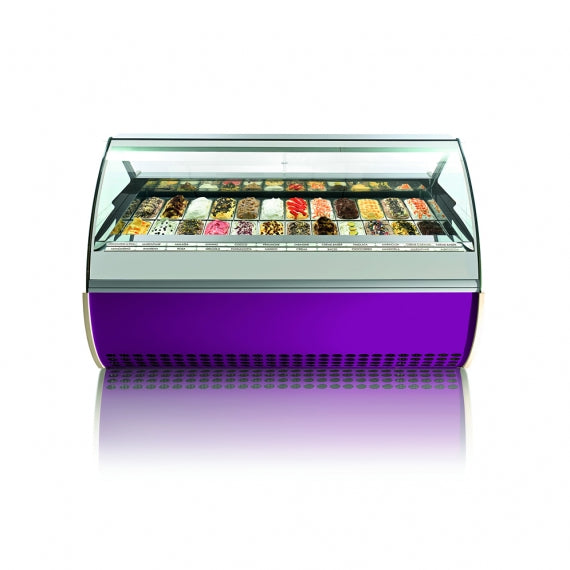

EVO Z-Series Gelato And Ice Cream Display Case
EVO Z-Series Gelato And Ice Cream Display Case
As times evolve and trends shift, the true classics stand strong. ORION embodies this enduring spirit with their latest creation, the Evo!
This petite ice cream display marvels with its compact design, yet it rivals the performance of its larger counterparts. The Evo's modular nature allows seamless integration with other displays, such as a pastry showcase, offering you versatile options.
Featuring state-of-the-art LED lighting, the Evo brings out the best in your products, showcasing them in a light like never before. Plus, its use of eco-friendly propane gas means you're not just displaying your products, but also your commitment to a lower environmental footprint.
EVO Z-Series Features:
- Self-contained, Air-cooled Condensing Unit
- Galvanized Steel Chassis Construction
- Unique Fan Assisted Airflow Design
- Insulated With Dense Non-cfc Ecologic Polyurethane Foam
- Back & Inside Structure Made Of High Gloss 304 Stainless Steel
- Heated Front And Side Glass
- Hydraulic Lift Up Front Glass
- Stainless Steel Work Surface
- Digital Diagnostic Control / Programmable Defrost
- Roll Down Rear Curtain
- The Standard Limited Warranty Includes: 5 Year Compressor: 1 Year Parts; 90 Days Labor
- Led Lighting
- Casters
- Granite Work Surface (Operator Side)
- Pans Not Included
- Factory Standard Matte White Front & Side Panels
Updated Model no. | Factory Codes | Dimensions | Line Voltage | Breaker Sizes | Amp Draws | -20 Evap Temp (R404a) | Working Temp F | Pan Capacity 5 Liter | Pan Capacity 12 Liter | Comp. HP |
---|---|---|---|---|---|---|---|---|---|---|
Z6 | G6 | 52.61" H x 46.92" L x 41.72" D x 950 lb | 220/1/60 | 20amps | 12 | 3069 | -10 to + 10 | 12 | 8 | 1 1/2 HP |
Z9 | G9 | 52.61" H x 66.60" L x 41.72" D x 1110 lb | 220/1/60 | 20amps | 14 | 6138 | -10 to + 10 | 18 | 12 | 2 HP |
Z12 | G12 | 52.61" H x 86.30" L x 41.72" D x 1250 lb | 220/1/60 | 30amps | 16 | 7850 | -10 to + 10 | 24 | 16 | 2 x 1 1/2 HP |
