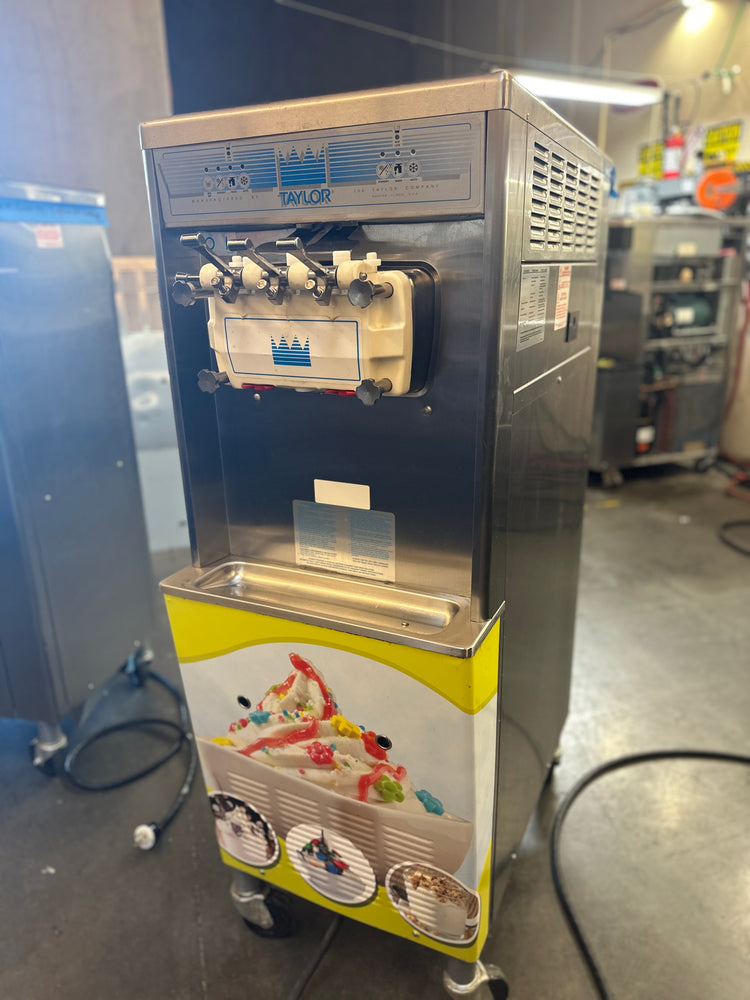

2008 Taylor 336-33 3ph air cooled
This offer is for a refurbished 2008 Taylor 336 3 phase air cooled soft serve machine in excellent working condition. Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.
Note: We will do our very best to help you operate the equipment properly and troubleshoot issues. We will also honor our warranty as detailed. But please understand we are not the manufacturer and we make no representations as to the production efficiency, output, electrical requirements and the like. We strongly encourage you to reach out to the manufacturer to get a better idea of what you are buying and that your electrical service can handle it.
All spec sheets, drawings, dimensions, performance data and other information made available by Turnkey Parlor are meant to provide our customers with a general idea. If you are purchasing an item please make sure you double check with manufacturer for specific details.
Features:
-
Freezing Cylinder: Two, 2.8 quart (2.7 liter).
-
Mix Hopper: Two, 8 quart (7.6 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) in Auto and Standby modes.
-
Indicator Lights: The Mix Low light alerts the operator to add mix. Audible alarm may be enabled to sound when mix is low.
-
Electronic Controls: Finished product quality is monitored by SoftechTM controls that measure viscosity.
-
Standby: During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.
-
Two Locking Casters: Front casters have a locking feature for operators to lock to maintain equipment in place. The locking casters can be released to move the equipment for cleaning.
-
Freezer Door: A specially designed thermo-plastic door allows quick ejection of product. Push forward on the ergonomic draw handle to dispense. Self-closing draw handles are standard.
336 Dimension Drawings:
Other Features:
-
Electrical: One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.
-
Beater Motor: Two, 1.0 HP
-
Refrigeration System: One, 9,500 BTU/hr. R404A. Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a.(BTUs may vary depending on compressor used.)
-
Water Cooled: Water inlet and drain connections under side of base 3/8” FPT
CLICK HERE FOR MANUAL
