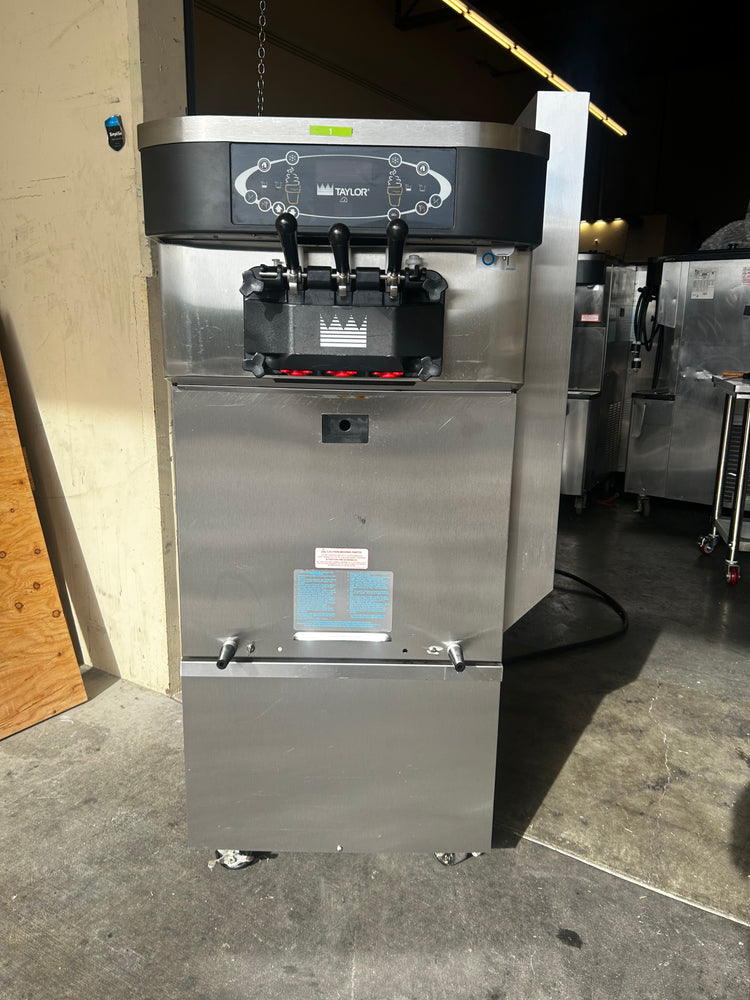

2019 Taylor C723-33 3PH Air-Cooled
Warranty for up to $7,500, valid for 30 days after receipt. The Taylor C723 Soft Serve Freezer is a high-performance, twin-twist commercial machine, perfect for serving low-fat or non-fat ice cream, frozen yogurt, custard, and sorbet. This unit allows operators to serve two separate flavors or a perfectly blended twist of both.
Key Features:
-
Dual Freezing Cylinders – Each cylinder has a 2.8-quart (2.7-liter) capacity for consistent, high-quality soft serve output.
-
Large Mix Hoppers – Two 14-quart (13.2-liter) hoppers with Separate Hopper Refrigeration (SHR) maintain mix below 41ºF (5ºC) in Auto and Standby modes.
-
Advanced Touchscreen Controls – A user-friendly microprocessor provides real-time monitoring of viscosity, temperature, draw counts, and cleaning reminders.
-
Indicator Lights & Auto Shut-Off – The Mix Low light alerts operators to add mix, and an audible alarm can be enabled. If mix runs out, the Mix Out light flashes and the unit automatically shuts down to prevent damage.
-
Standby Mode – Maintains safe product temperatures during extended no-use periods.
-
Durable, Ergonomic Freezer Door – The thermoplastic dispensing door allows quick ejection of product. Operators can easily dispense servings using the push-forward, self-closing draw handles.
-
Safety & Operator Protection – The Door Interlock System ensures the beater will not operate unless the dispensing door is securely in place.
Cooling Options:
-
Air-Cooled Model: Requires a minimum of 6 inches (152 mm) clearance on both sides. A rear clearance of 6 inches is recommended unless using the optional air discharge chute.
-
Water-Cooled Model: Requires 3/8-inch FPT water inlet and drain connections.
Electrical Requirements:
-
Beater Motors: Two 1.0 HP motors for powerful, consistent mixing.
-
Refrigeration System:
- One 8,300 BTU/hr R449A refrigeration system for freezing cylinders.
- One 400 BTU/hr R134a refrigeration system for mix hopper.
-
Voltage Options: 208-230V / 60Hz / 1 or 3 phase, with various amperage options.
Unit Dimensions & Weight:
| Specification |
Measurement |
| Width |
23-5/16 in. (592 mm) |
| Depth |
33-13/16 in. (858 mm) |
| Height |
36-1/2 in. (927 mm) |
| Net Weight |
500 lbs (226.8 kg) |
| Crated Weight |
559 lbs (253.6 kg) |
Optional Accessories:
- Standard or ADA-compliant carts with casters
- Hopper agitators for improved mix circulation
- Drain adapter for easier cleaning and rinsing
- Top air discharge for better ventilation
- Locking draw valves for added security
- Additional decals for customization
The Taylor C723 is an ideal choice for ice cream shops, frozen yogurt stores, restaurants, and dessert businesses looking for a high-capacity, user-friendly, and durable soft serve machine.
