2013 Taylor 791 1PH Air Cooled w/ Warranty

$19,490.00 $10,970.00

( You save:  $8,520.00)

Click here to Finance

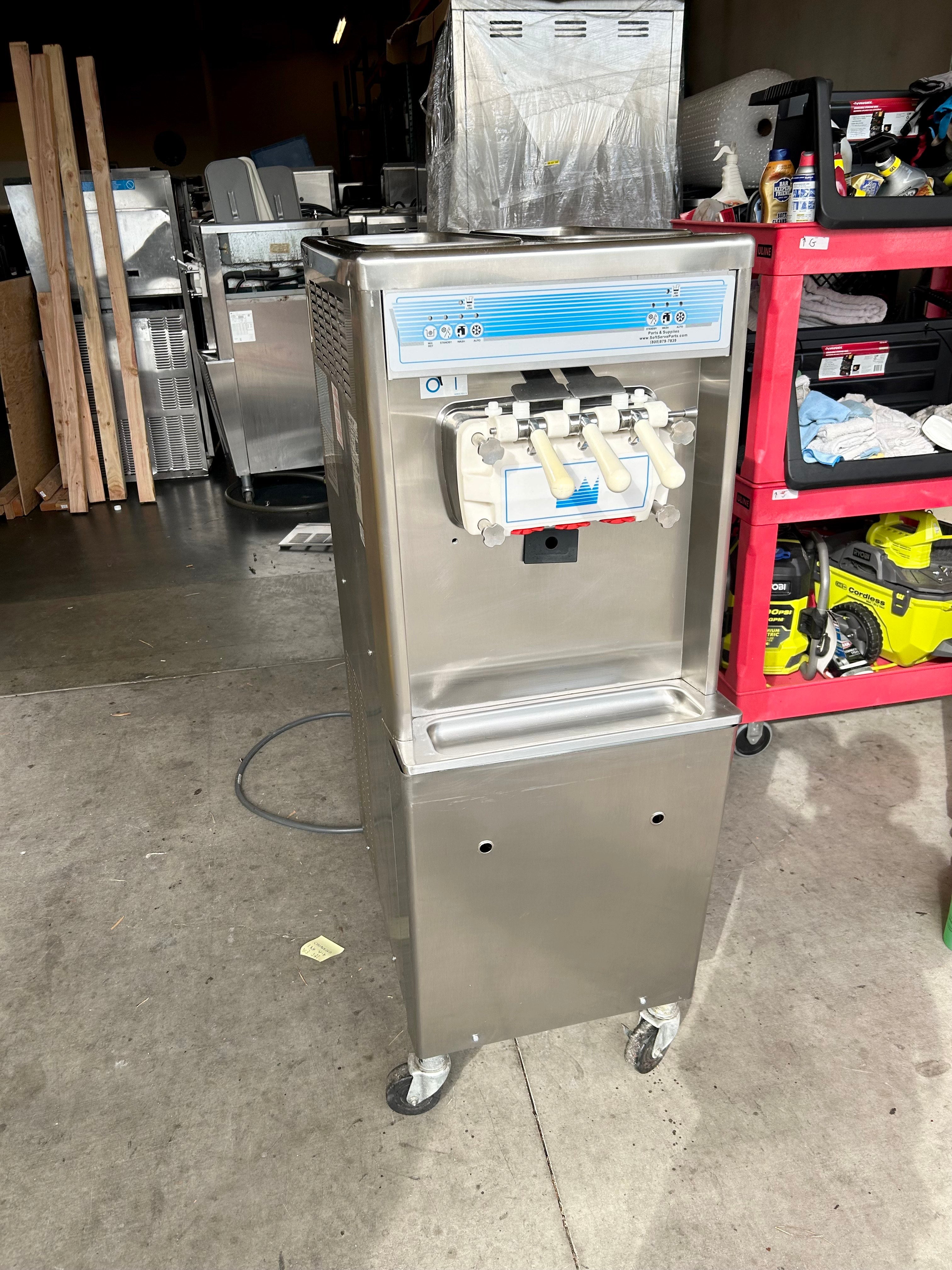

2013 Taylor 791 Single Phase Air Cooled

Warranty: Works when you get it or we pay to fix. No small print warranty here.

This air cooled Taylor 791 was converted to single phase and has been totally refurbished including new belts, o-rings and blades. Has a nice ding on the side panel but that is purely cosmetic. Machine runs great

Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet. Serve two separate soft serve avors, or an equal combination of both in a twist.


  1. Freezing Cylinder: Two, 3.4 quart (3.2 liter).
  2. Mix Hopper: Two, 14 quart (13.2 liter). Separate hopper refrigeration (SHR) maintains mix below 41”F (5”C) during Auto and Standby modes.
  3. Indicator Lights: Mix Low and Mix Out light alerts operator to add mix. Audible alarm may be enabled to sound when mix is low.
  4. Electronic Controls: Softechtm is our exclusive microprocessor based master control that regulates refrigeration by measuring product viscosity to maintain consistent quality.
  5. Standby: During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.
  6. Optional Drain Assembly: A factory installed optional, drain assembly, with funnel, is available to simplify the cleaning process. A drain line, connected under the drip tray connects to a 1” FPT coupling in the base pan to drain rinse water directly into the door drain.
  7. Two Locking Casters: Front casters have a locking feature for operators to lock to maintain equipment in place. The locking casters can be released to move the equipment for cleaning.
  8. Freezer Door: A specially designed thermo-plastic door allows quick ejection of product with a simple movement of the draw handle. Self closing draw handles are standard.
  9. Door Interlock System: Protects the operator from injury as the beater will not operate without the dispensing door in place.
  10. Pull Handles: Convenient recessed pull handles for ease in moving the equipment for cleaning.

Additional Features:

  1. Electrical: One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Unit supplied with cord and plug. Consult the international Taylor distributor for cord & receptacle specications for 50 Hz. equipment.
  2. Beater Motor: Two, 1.5 HP.
  3. Refrigeration System: One, 9,500 BTU/hr. R404A. Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a. (BTUs may vary depending on compressor used.)
  4. Water Cooled: Water inlet and drain connections under side of base 1/2” FPT


791 Taylor Detailed Specifications:

Weights Lbs. Kgs.
Net 527 239.0
Crated 586 265.8
Dimensions in. mm.
width 20-7/16 519
Depth(does not include cord) 33-3/16 843
Height 59-7/8 1521
Floor Clearance 4-1/2 114
Electrical Total Amps. Supplied with NEMA cord
208-230/60/1 14.0 L15-20P


NEW EQUIPMENT: You have 14 days to notify us that you want to return brand new equipment for a full refund less shipping costs and a 20% restocking fee. To return new equipment, it must be in the same packaging that it arrived in. New equipment warranty is as per manufacturer stated warranty

USED EQUIPMENT: You have 14 days to notify us that you want to return used equipment for a full refund less shipping costs and a 20% restocking fee. We guarantee proper working condition on all used equipment we ship. If it is not working for any reason when received, we will pay to have a local service company fix it as long as you notify us there is an issue within 30 days after you receive it.
