2012 Taylor 336 3PH Water Cooled


Sorry, this product has SOLD

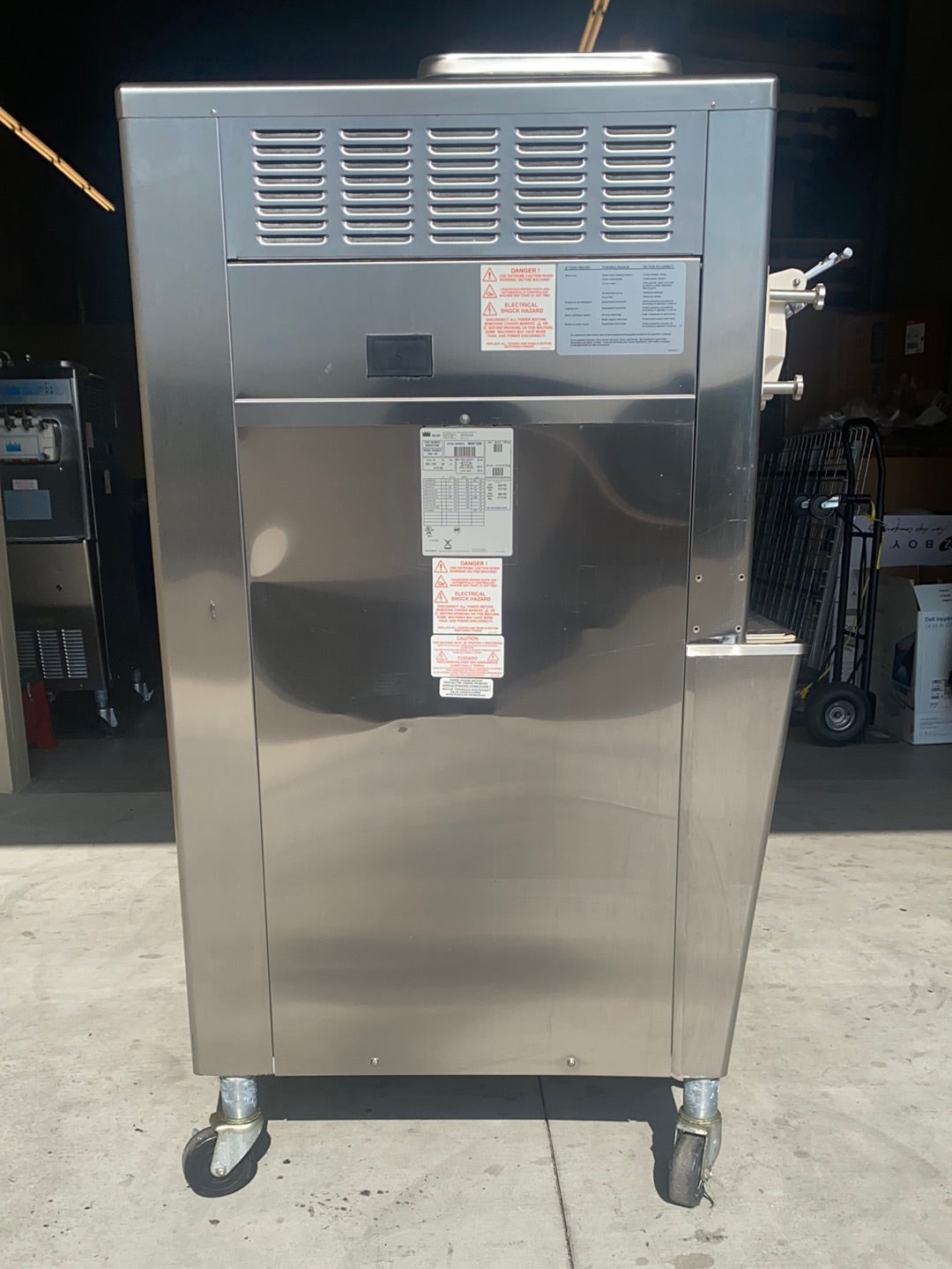

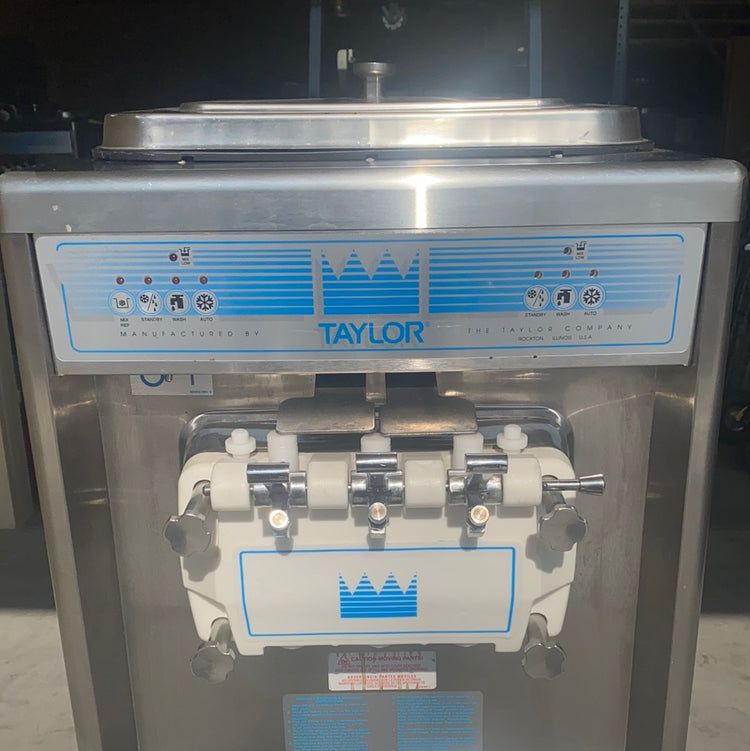

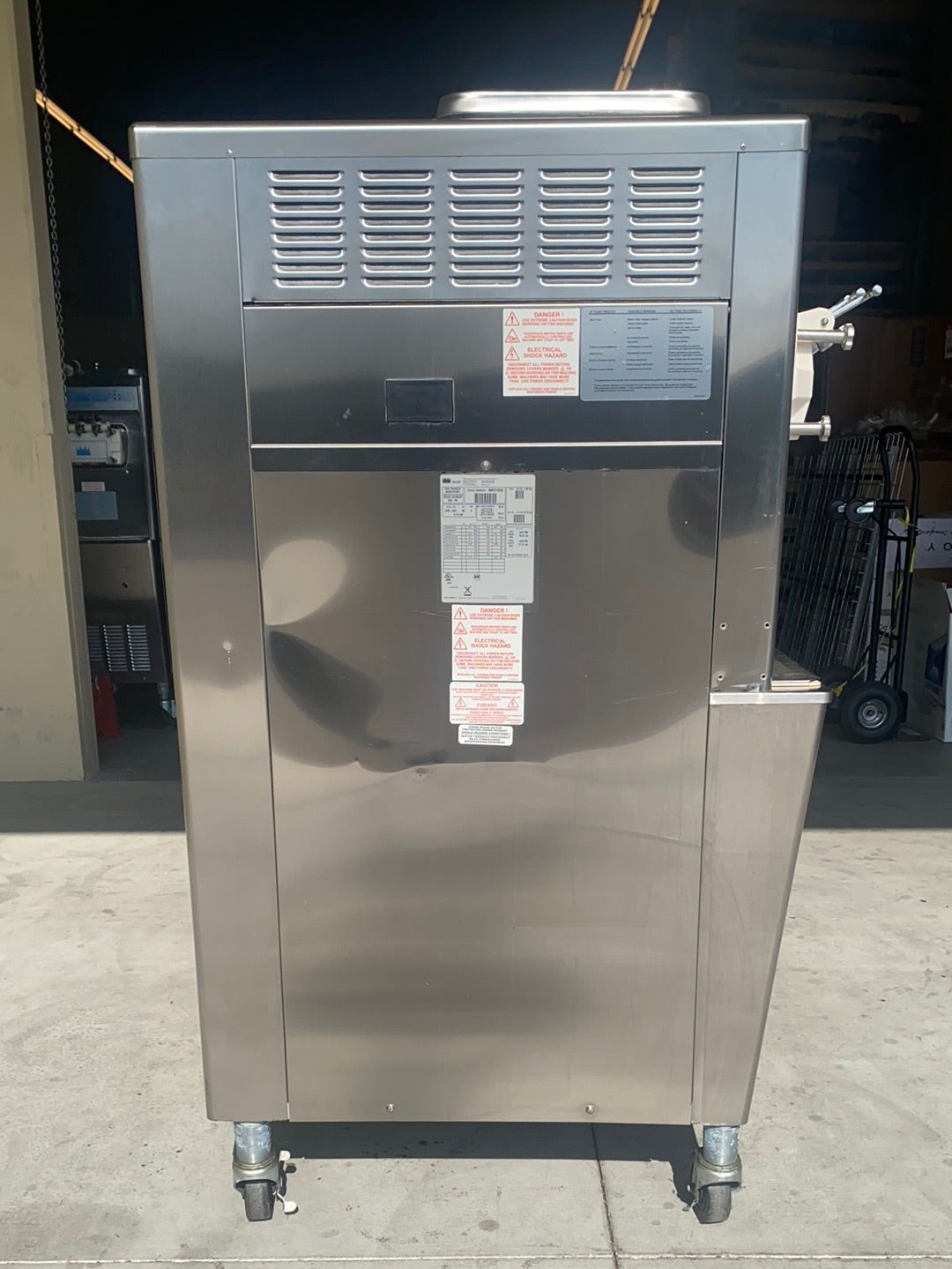

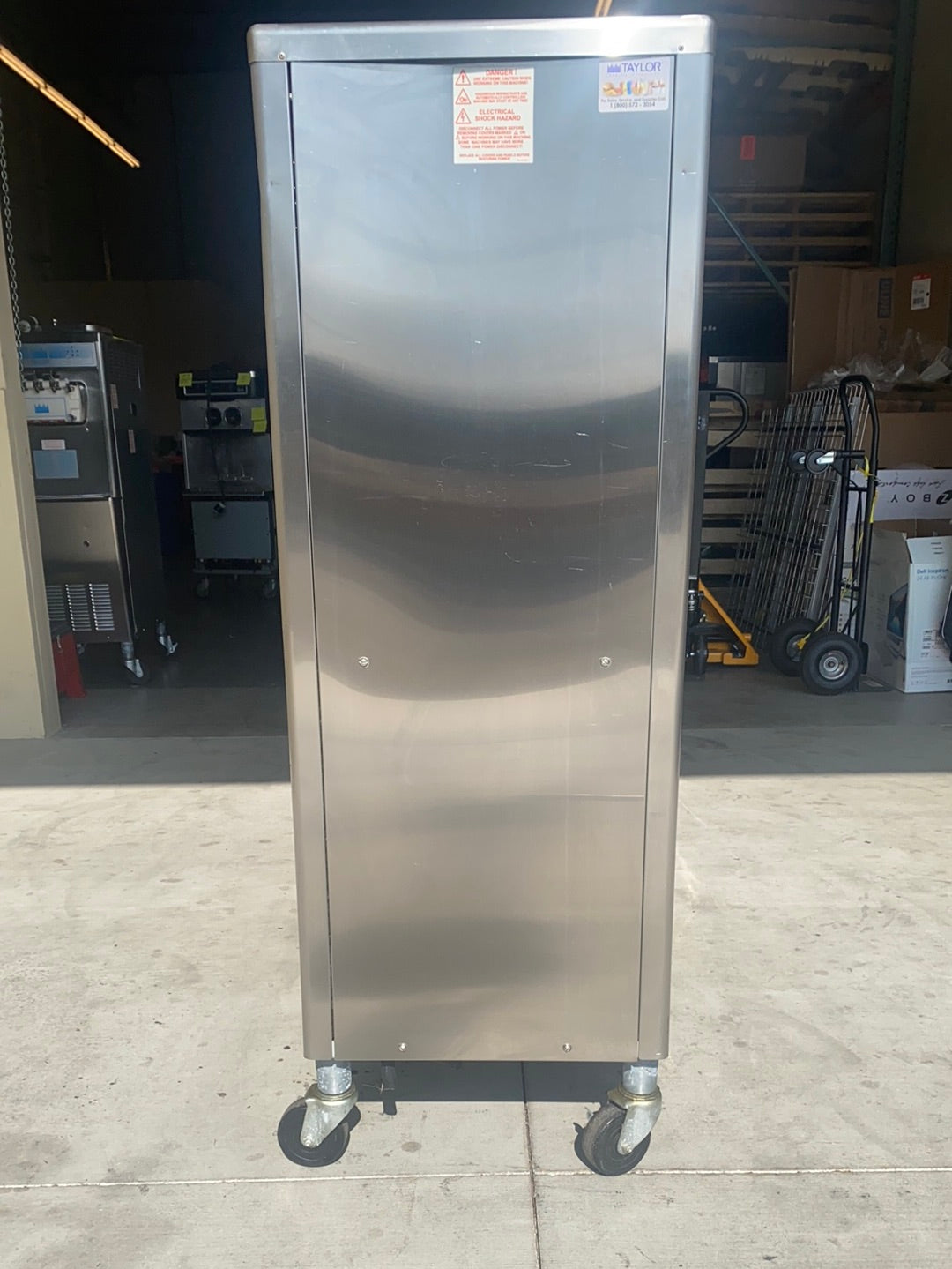

USED Taylor 336-33 Soft Serve Machine

This USED Taylor 336 is a three phase, water-cooled machine: Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet. Serve two separate soft serve flavors, or an equal combination of both in a twist.


  1. Freezing Cylinder: Two, 2.8 quart (2.7 liter).
  2. Mix Hopper: Two, 8 quart (7.6 liter). Separate hopper refrigeration (SHR) maintains mix below 41ºF (5ºC) in Auto and Standby modes.
  3. Indicator Lights: The Mix Low light alerts the operator to add mix. Audible alarm may be enabled to sound when mix is low.
  4. Electronic Controls: Finished product quality is monitored by SoftechTM controls that measure viscosity.
  5. Standby: During long no-use periods, the standby feature maintains safe product temperatures in the mix hopper and freezing cylinder.
  6. Two Locking Casters: Front casters have a locking feature for operators to lock to maintain equipment in place. The locking casters can be released to move the equipment for cleaning.
  7. Freezer Door: A specially designed thermo-plastic door allows quick ejection of product. Push forward on the ergonomic draw handle to dispense. Self-closing draw handles are standard.

Other Features:

  1. Electrical: One dedicated electrical connection is required. See the Electrical chart for the proper electrical requirements. Manufactured to be permanently connected. Consult your local Taylor distributor for cord & receptacle specifications as local codes allow.
  2. Beater Motor: Two, 1.0 HP
  3. Refrigeration System: One, 9,500 BTU/hr. R404A. Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a.(BTUs may vary depending on compressor used.)
  4. Water Cooled: Water inlet and drain connections under side of base 3/8” FPT











336-33 Taylor Detailed Specifications:

Weights lbs. kgs.
Net 520 235.9
Crated 551 249.9
Dimensions in. mm.
Width 20-7/16 519
Depth 33 839
Height 59-7/8 1521
Floor Clearance 7-5/8 194
Electrical Maximum Fuse Size Minimum Circuit Ampacity Poles (p) Wires (w)
208-230/60/3 Water 20 16 3P 4W


NEW EQUIPMENT: You have 14 days to notify us that you want to return brand new equipment for a full refund less shipping costs and a 20% restocking fee. To return new equipment, it must be in the same packaging that it arrived in. New equipment warranty is as per manufacturer stated warranty

USED EQUIPMENT: You have 14 days to notify us that you want to return used equipment for a full refund less shipping costs and a 20% restocking fee. We guarantee proper working condition on all used equipment we ship. If it is not working for any reason when received, we will pay to have a local service company fix it as long as you notify us there is an issue within 30 days after you receive it.
